This page showcases the computational fluid dynamics (CFD Analysis) and engineering projects created by DYNEDE Ltd.

Here you will find samples of generated CFD results, along with a short summary of technical descriptions and applications..

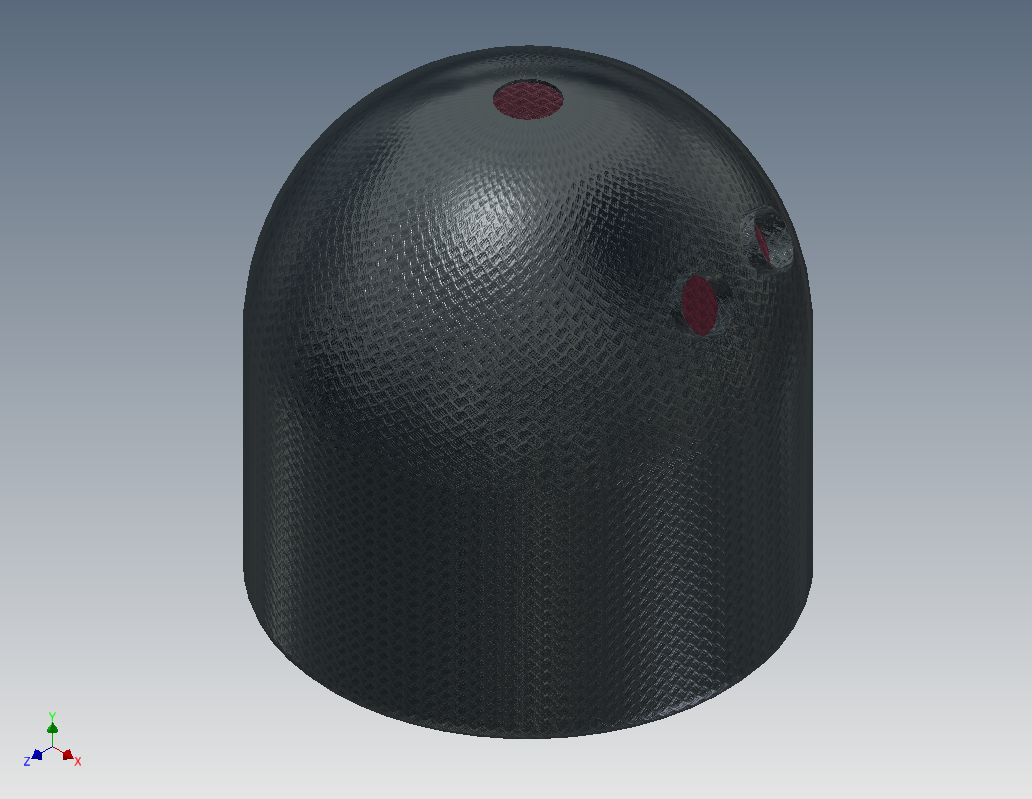

Multiphase Mixing Vessel- 3D Model

This is a 3D designed vessel created in CAD. Application: Used used to simulate mixing of two different fluids

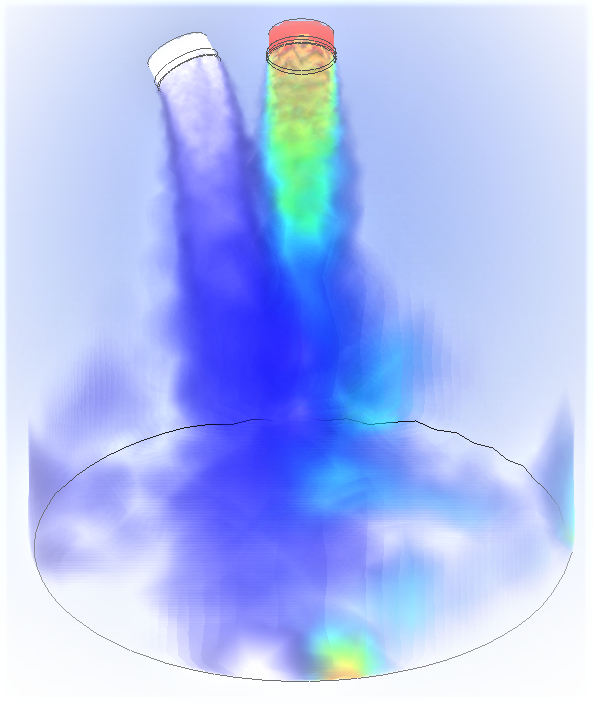

3D Multiphase Analysis

The image on the left is a demonstration of three dimentional multiphase analysis of two different fluids in order to underestand the behaviour of fluids during the mixing process.

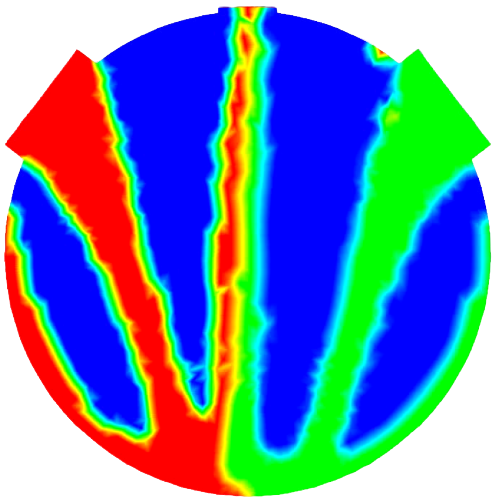

2D Multiphase

The image on the left in a two dimentional demonstration of mixing water and kerosene which are of two dipherent properties. The vessel is a simple spherical container with two enteries for water and kerosene, and a hole on the top for air to escape during the simulation.
